Bayint BY-MA101 Medical Monitor Wall Mount Arm

Optional accessories are identified separately. Images show reference configurations; only items listed in the quotation are supplied.

Medical Mounts & Support Arms · BY-MA101

Bayint BY-MA101 Medical Monitor Wall Mount Arm

An aluminum wall-mount arrangement with a standard wall channel, articulated device positioning and optional basket storage.

PRODUCT PRICING

Request current price range

Get a quotation for your device, configuration and order quantity.

Wall-channel installationA 320 mm standard channel provides the mounting interface; other channel lengths can be discussed.
Position the viewing angleThe arm offers ±90° swivel, with the tilt option selected for the intended device position.
Separate component load limitsThe arm and tilt mechanism have different limits. Complete-system capacity must be confirmed for the selected device and interface.

Get a product quote WhatsApp

Mounting arm and agreed channel/interface components only. Device, installation service and wall-specific fixing requirements are not included unless quoted.

PRODUCT OVERVIEW

Explore the configuration

An aluminum wall-mount arrangement with a standard wall channel, articulated device positioning and optional basket storage.

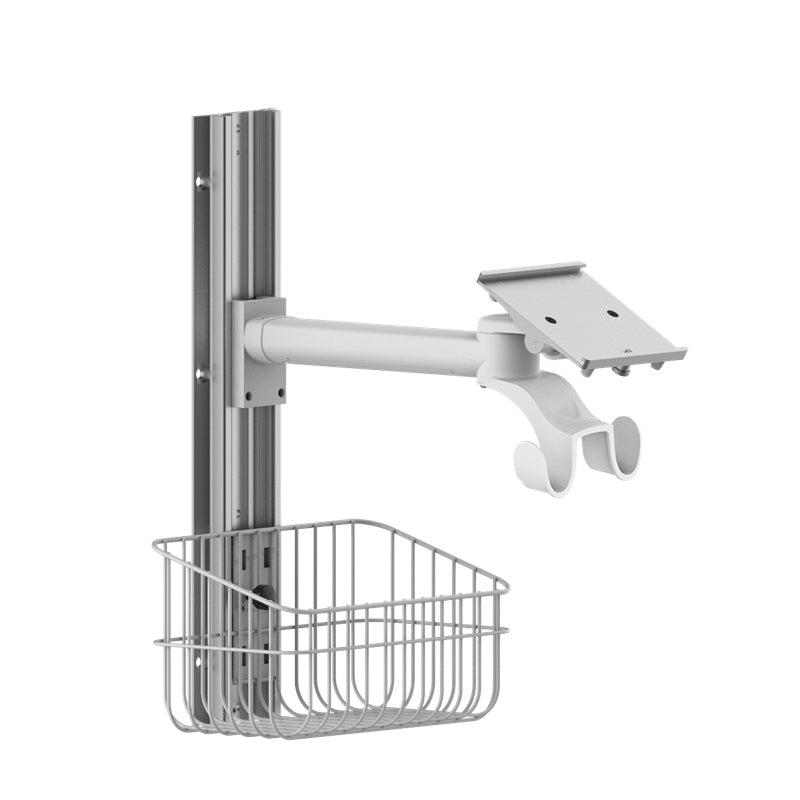

Bayint BY-MA101 Medical Monitor Wall Mount Arm — **Product configuration**
Mounting arm and agreed channel/interface components only. Device, installation service and wall-specific fixing requirements are not included unless quoted.

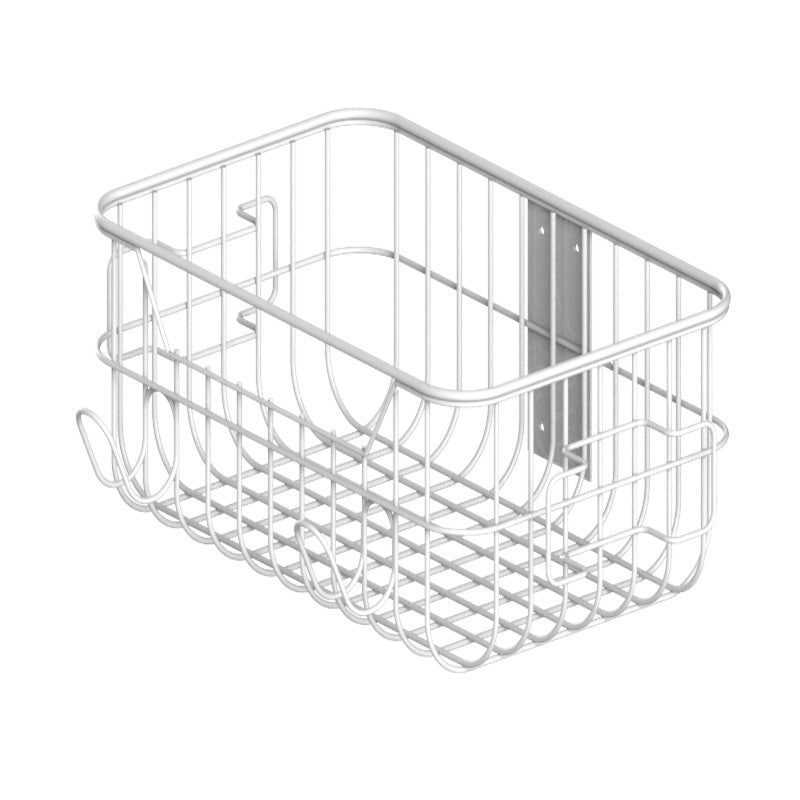

Bayint Medical Monitor Wall Mount Arm — Optional basket with cord wrap and cable hooks — **Optional basket with cord wrap and cable hooks**
Reference component or configuration. Confirm inclusion and fit in your quotation.

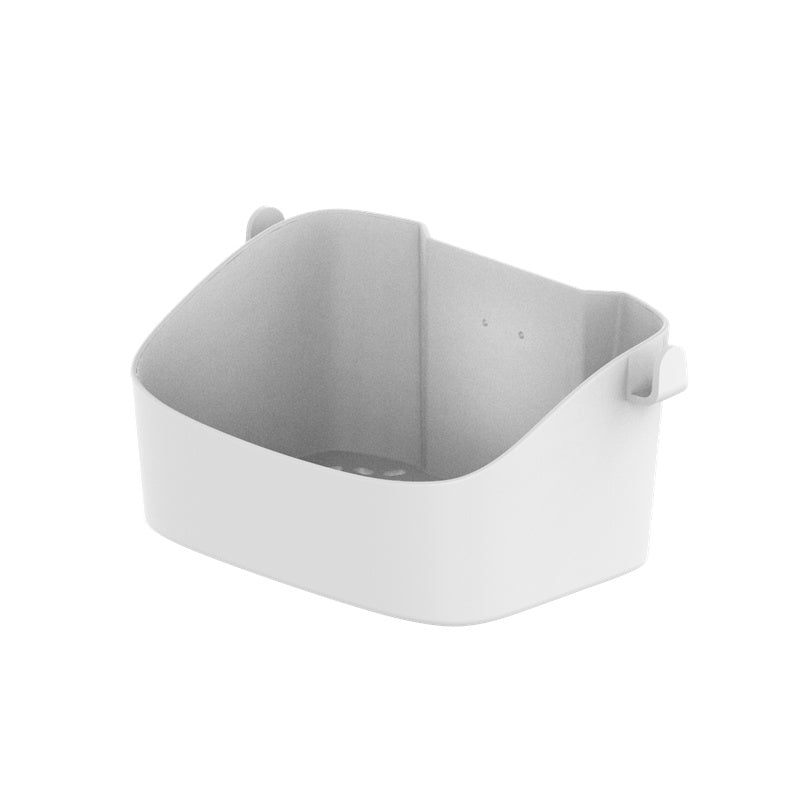

Bayint Medical Monitor Wall Mount Arm — Optional storage bin with cable hooks — **Optional storage bin with cable hooks**
Reference component or configuration. Confirm inclusion and fit in your quotation.

TECHNICAL DETAILS

Product specifications

Reference values apply to the configuration described. Check the final assembly before ordering.

Brand	Bayint
Model	BY-MA101
Material	Aluminum alloy
Finish / color	Medical white
Standard wall channel	320 mm
Arm length	293 mm
Swivel range	±90°
Tilt options	0° to −25° or 0° to −120°; configuration-dependent
Arm component maximum load	30 kg
Tilt mechanism maximum load	15 kg
Cable routing	Concealed within channel
Device connection	Socket interface; matched device adapter required

BUILD YOUR CONFIGURATION

Options & accessories

Accessory dimensions below describe the individual component, not the complete cart.

Wall channel

Standard 320 mm; alternative lengths on request

Storage basket

Optional

Device adapter

Selected for the exact device model

MODEL-SPECIFIC SUPPORT

Confirm the details
before you order.

Send the equipment model, photos of the mounting interface, quantity and destination. We will review the configuration and quote the selected components.

Enquire about BY-MA101

What information should I send?

Device weight and interface
Mounting surface and available space
Required reach

What is included?

Mounting arm and agreed channel/interface components only. Device, installation service and wall-specific fixing requirements are not included unless quoted.

Will this fit my equipment?

Fit depends on the exact device dimensions, mounting pattern and complete load. Send the full model and mounting details so we can review them.

How is my final price confirmed?

Your quotation identifies the selected configuration, quantity, shipping arrangements and delivery terms. Contact Bayint for the current range and a configuration-specific price.
