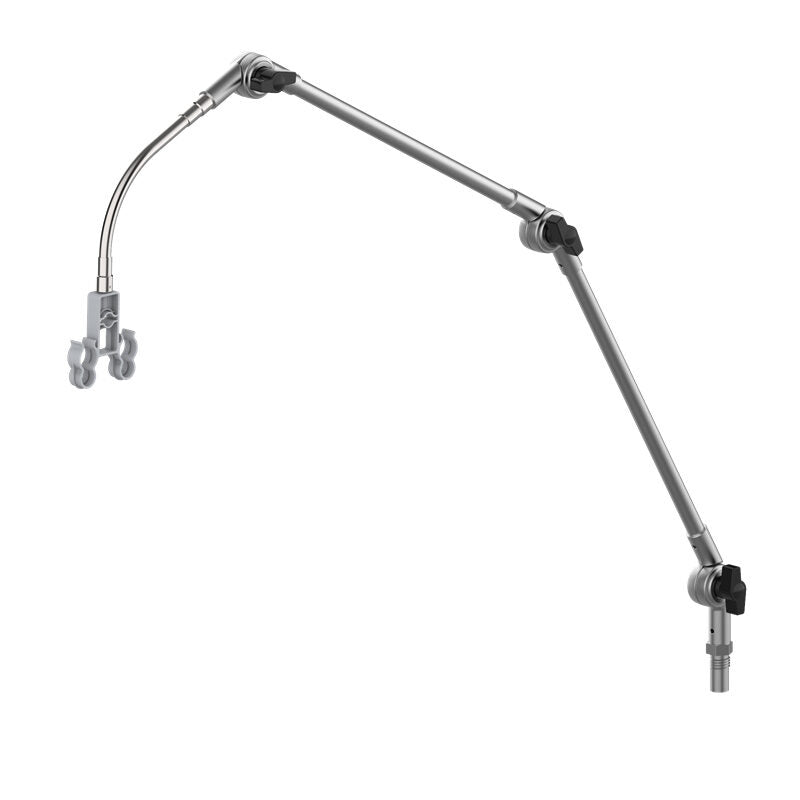

Bayint BY-MA301 Articulating Ventilator Circuit Support Arm
Optional accessories are identified separately. Images show reference configurations; only items listed in the quotation are supplied.
Medical Mounts & Support Arms · BY-MA301
Bayint BY-MA301 Articulating Ventilator Circuit Support Arm
An articulated arm for supporting breathing-circuit tubing beside respiratory equipment. It supports the circuit tubing, not a ventilator machine.
PRODUCT PRICING
Request current price range
Get a quotation for your device, configuration and order quantity.
- Extended tubing supportA 1,245 mm reference arm length provides a starting point for reviewing the required reach.
- Button-operated jointsPress the joint button to rotate and position the arm.
- Bolt-fixed installationCheck the fixing interface and the tubing holders against the equipment configuration.
Support arm configuration only. Ventilator, tubing and clinical consumables are excluded.
PRODUCT OVERVIEW
Explore the configuration
An articulated arm for supporting breathing-circuit tubing beside respiratory equipment. It supports the circuit tubing, not a ventilator machine.
Support arm configuration only. Ventilator, tubing and clinical consumables are excluded.
TECHNICAL DETAILS
Product specifications
Reference values apply to the configuration described. Check the final assembly before ordering.
| Brand | Bayint |
|---|---|
| Model | BY-MA301 |
| Materials | Steel / aluminum alloy / plastic |
| Arm length | 1,245 mm |
| Load reference | 1 kg |
| Net weight | 2 ± 0.2 kg |
| Joint adjustment | Press button and rotate |
| Installation | Bolt fixing |
| Package dimensions | 520 × 460 × 70 mm |
BUILD YOUR CONFIGURATION
Options & accessories
Accessory dimensions below describe the individual component, not the complete cart.
Installation interface
Confirm fixing location and hardware
MODEL-SPECIFIC SUPPORT
Confirm the details
before you order.
Send the equipment model, photos of the mounting interface, quantity and destination. We will review the configuration and quote the selected components.
Enquire about BY-MA301What information should I send?
- Tubing and holder dimensions
- Mounting location
- Required reach and articulation
What is included?
Support arm configuration only. Ventilator, tubing and clinical consumables are excluded.
Will this fit my equipment?
Fit depends on the exact device dimensions, mounting pattern and complete load. Send the full model and mounting details so we can review them.
How is my final price confirmed?
Your quotation identifies the selected configuration, quantity, shipping arrangements and delivery terms. Contact Bayint for the current range and a configuration-specific price.
