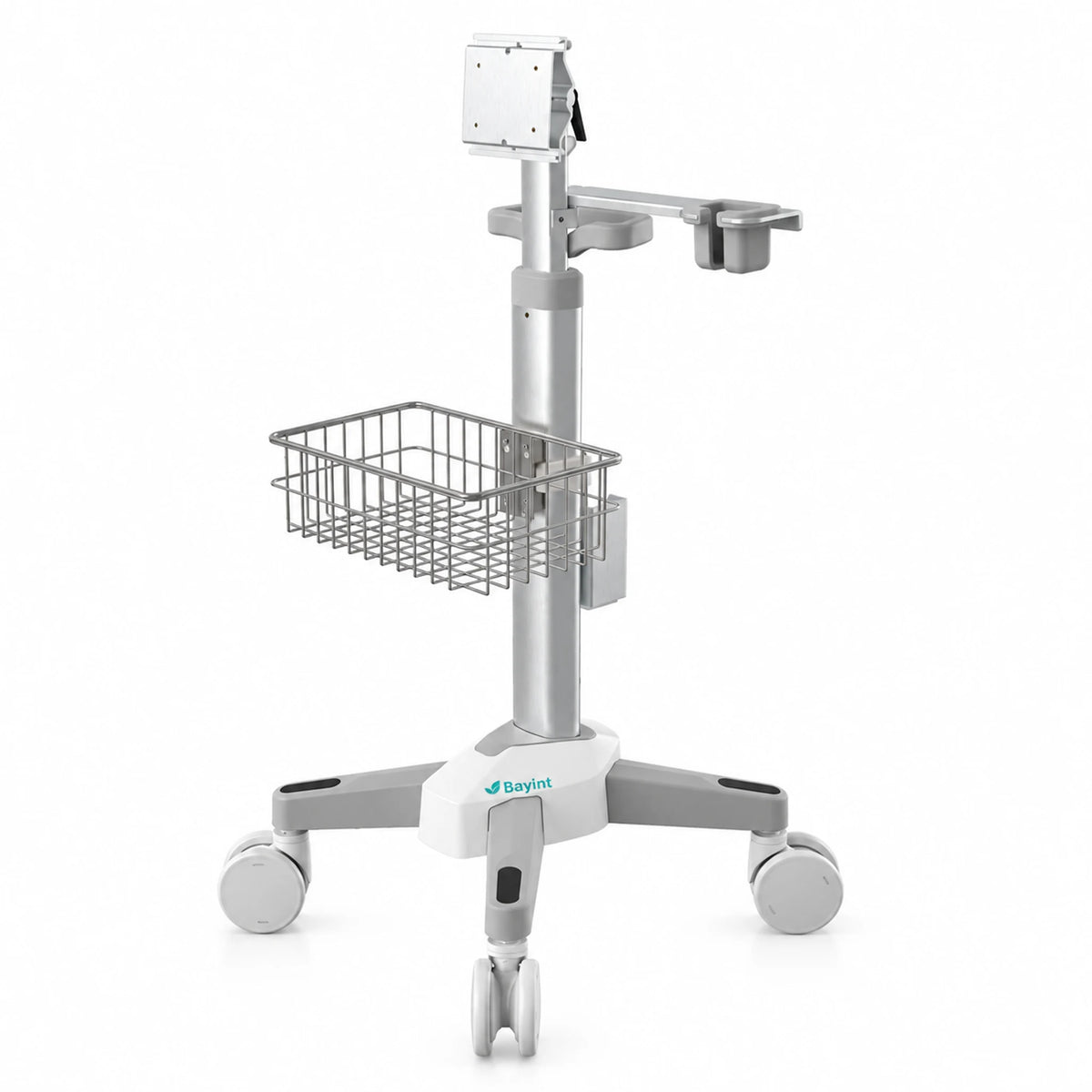

Bayint height adjustable ventilator trolley with silver column wire basket and custom mounting platform on white background
Optional accessories are identified separately. Images show reference configurations; only items listed in the quotation are supplied.
US$128.70–259.99
Final quote based on your configuration and quantity.
Shipping, taxes and duties are excluded.
Bring equipment mounting and everyday storage together on a configurable medical trolley.
One modular platform. A setup built around you.
The Bayint BYUCLU008 combines equipment mounting, storage and mobility in one modular medical cart. Set the platform between 100 and 120 cm, then select the mounting plate and accessories around your ventilator and clinical workspace.
These examples show different approaches to equipment mounting and bedside storage. Bayint can customise individual structural components around your hardware, rather than requiring every customer to use the same setup.
Build a ventilator trolley with a storage basket, custom mounting plate and optional equipment holders. Structural and hardware interfaces can be adapted for compatible monitors, flat-panel ultrasound systems and multi-parameter vital signs instruments.
Send your device dimensions, weight, mounting drawing and preferred accessories. We review fit and configuration before production.
A mobile ventilator stand can bring a compatible ventilator and selected accessories beside a hospital bed. Plan room for breathing circuits, the equipment platform and any support arm when choosing your layout.
The ventilator display in this illustration shows respiratory waveforms. Final device mounting and total load must be checked for the selected configuration.
With the appropriate mounting interface, the cart can support a multi-parameter monitor for bedside observation in patient wards or examination areas. Keep the display at a useful viewing height and everyday supplies in the adjustable basket.
The illustrated screen shows ECG, heart rate, SpO₂, blood pressure, respiration and temperature. Equipment and display values are illustrative.
The cart measures 45 × 41 × 120 cm overall at maximum height. Adjust the platform manually from 100 to 120 cm above the floor.
The 41 × 37.5 cm wheel-centre distance is a separate measurement from the outer footprint. Allow extra clearance for the mounted device and any extended accessories.
| Brand / model | Bayint / BYUCLU008 |
|---|---|
| Materials | Aluminium alloy, steel and modified engineering plastic |
| Load capacity | 3–7 kg, depending on configuration |
| Platform tilt | 45° |
| Mounting-hole spacing | 6.2 × 8.5 cm; custom hole patterns available |
| Platform height from floor | 100–120 cm; manual adjustment |
| Height adjustment travel | 20 cm |
| Overall dimensions (L × W × H) | 45 × 41 × 120 cm |
| Wheel-centre distance (L × W) | 41 × 37.5 cm |
| Basket dimensions (L × W × H) | 32 × 20 × 10 cm; mounting height manually adjustable |
| Casters | Four dual-wheel medical casters, 7.62 cm diameter, with brakes and quiet rubber tread |
| Net / gross weight | ≤ 8.2 kg / ≤ 11.5 kg |
| Custom options | Mounting platform, local structural components, equipment holders and storage modules |
| Raw-material testing | Raw materials tested; request the applicable report for your configuration |
| Price basis | US$128.70–259.99 per unit, EXW; shipping, taxes and duties excluded |
Share your ventilator model, weight and mounting drawing. The 6.2 × 8.5 cm mounting-hole pattern can be customised. We review the complete setup against the configuration-dependent 3–7 kg load capacity.
Yes. The platform adjusts manually from 100 to 120 cm above the floor, with 20 cm of travel. The basket mounting height can also be adjusted.
Yes, with a compatible mounting platform and approved device configuration. Monitor, flat-panel ultrasound and other hardware modules can be considered individually.
The modular medical cart can combine a custom top plate, device holders, storage basket and selected structural components. Send hardware drawings so interfaces and clearances can be reviewed.
Your quotation specifies the cart and accessories supplied. Medical devices are not included unless itemised. The reference price is US$128.70–259.99 per unit, EXW; shipping, taxes and duties are excluded.
All product prices are EXW factory prices. Shipping, taxes and duties are not included.
