Bayint BY-US101 Height-Adjustable Portable Ultrasound Cart

Optional accessories are identified separately. Images show reference configurations; only items listed in the quotation are supplied.

Portable Ultrasound Carts · BY-US101

Bayint BY-US101 Height-Adjustable Portable Ultrasound Cart

A mobile ultrasound workstation that brings the portable system, probe storage and everyday scanning supplies into one configuration.

PRODUCT PRICING

Request current price range

Get a quotation for your device, configuration and order quantity.

Gas-spring height adjustmentA hand-operated gas spring adjusts the reference top-to-floor height from 688 to 1,128 mm.
Probe storage optionsSelect holders for the actual probes you use, including their shape and cable clearance.
Power-supply organizationOptional charger organizers provide a dedicated place for the power supply and cable.

Get a product quote WhatsApp

Ultrasound unit, probes and consumables are excluded. Probe holders and storage options must be listed in the quotation.

PRODUCT OVERVIEW

Explore the configuration

A mobile ultrasound workstation that brings the portable system, probe storage and everyday scanning supplies into one configuration.

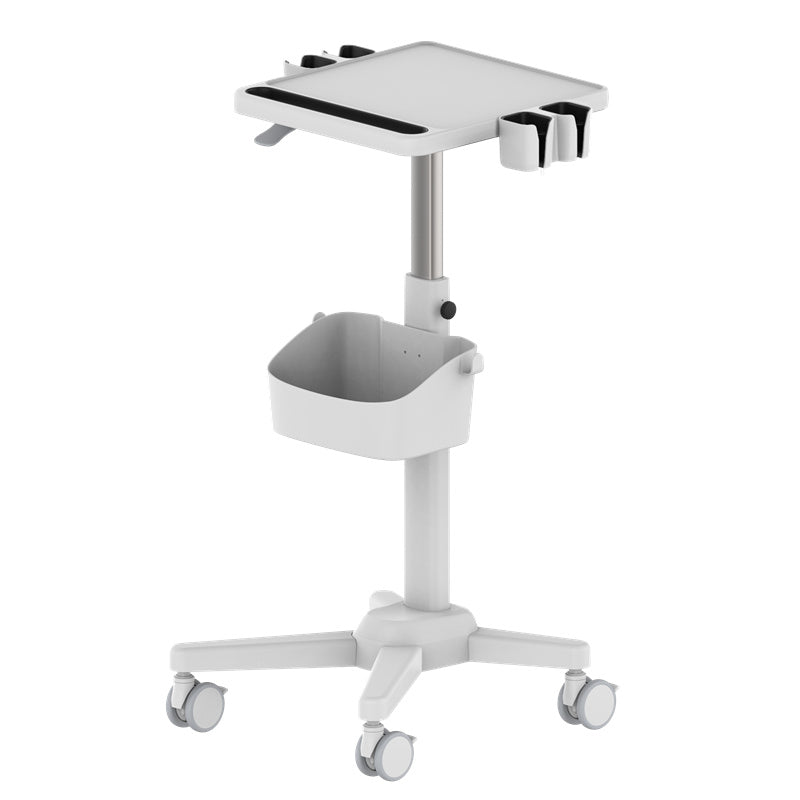

Bayint BY-US101 Height-Adjustable Portable Ultrasound Cart — **Product configuration**
Ultrasound unit, probes and consumables are excluded. Probe holders and storage options must be listed in the quotation.

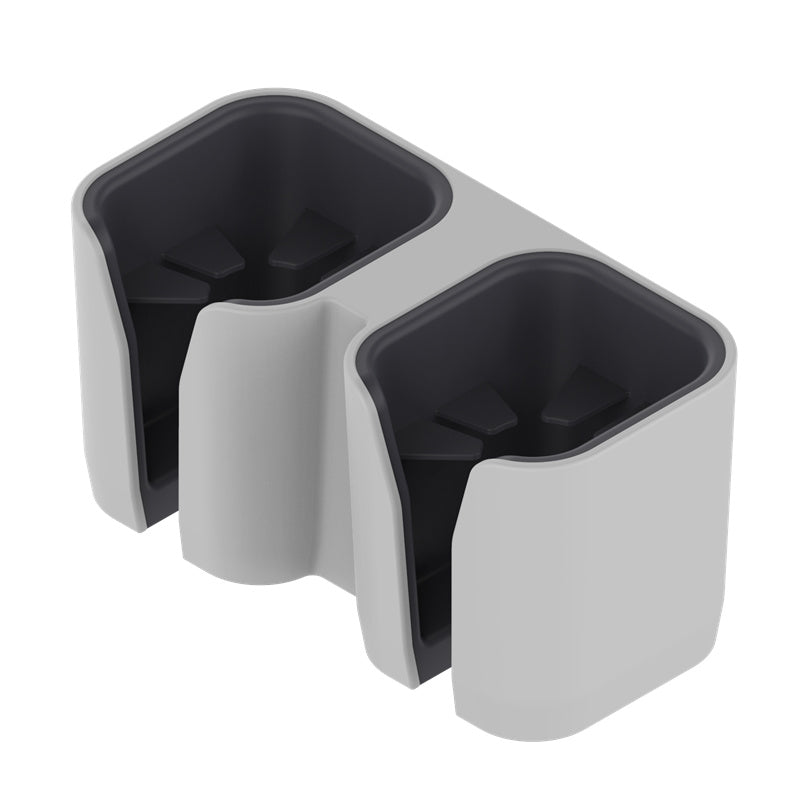

Bayint Height-Adjustable Portable Ultrasound Cart — Optional wireless probe holders — **Optional wireless probe holders**
Reference component or configuration. Confirm inclusion and fit in your quotation.

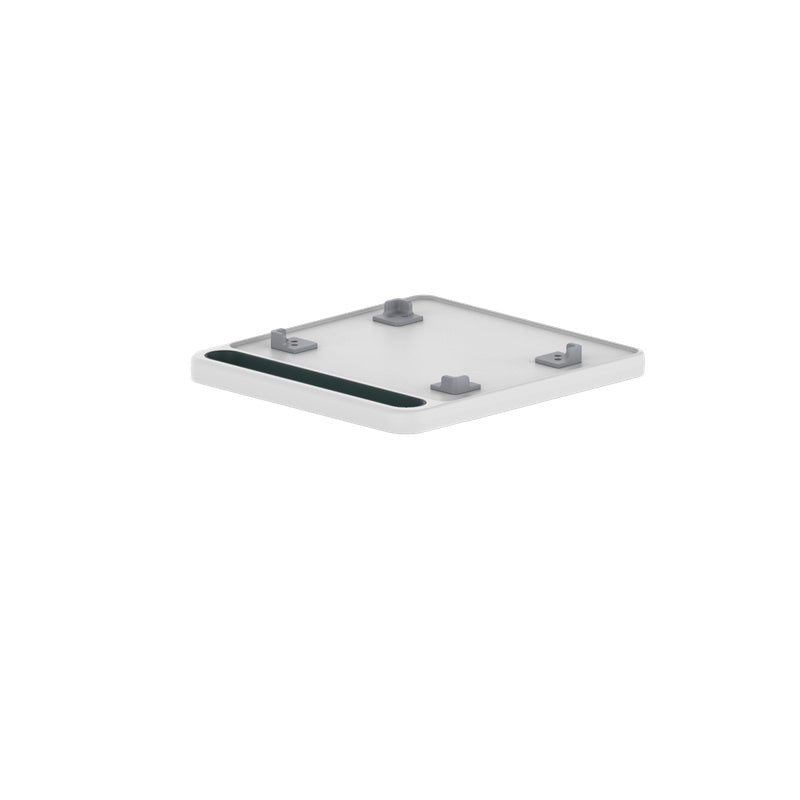

Bayint Height-Adjustable Portable Ultrasound Cart — Optional positioning tabletop — **Optional positioning tabletop**
Reference component or configuration. Confirm inclusion and fit in your quotation.

TECHNICAL DETAILS

Product specifications

Reference values apply to the configuration described. Check the final assembly before ordering.

Brand	Bayint
Model	BY-US101
Product type	Portable ultrasound trolley
Materials	Aluminum alloy / steel plate / ABS / PC
Height adjustment	Hand-operated gas spring
Top-to-floor height	688–1,128 mm
Tabletop load limit	5 kg
Storage bin load limit	2 kg
Tabletop overall dimensions	400 × 430 mm
Usable tabletop dimensions	379 × 343 mm
Probe holder configuration	Selected for the actual probe dimensions and quantity

BUILD YOUR CONFIGURATION

Options & accessories

Accessory dimensions below describe the individual component, not the complete cart.

ABS tabletop option

430 × 400 mm overall; 343 × 379 mm effective working area

Storage bin option

ABS; 340 × 213 × 149 mm

ABS charger organizer option

175 × 80 mm internal effective space

Probe holder options

Holder type and quantity selected for the actual probe

BY-US101: check the usable support area and probe access

BY-US101 uses hand-operated gas-spring height adjustment. Its reference tabletop-to-floor range is 688–1,128 mm; the overall top measures 400 × 430 mm and the usable support area 379 × 343 mm. The tabletop load limit is 5 kg and the storage-bin limit is 2 kg. These values belong to this reference and must be checked against the ordered configuration.

Send the ultrasound system's support footprint, weight, ventilation and connector locations. Count the probes and provide their dimensions so holders can be reviewed. Check that probe cables stay clear of the wheels, the system is retained during movement, and routine controls remain accessible at the intended height. A printer, battery or extra holder changes the layout and must be reviewed separately.

Keep the approved equipment list, drawing and supplied-component list with the order. Accessories, OEM changes, delivery conditions and configuration-specific documentation are agreed in the project quotation.

Continue the equipment and purchasing review

MODEL-SPECIFIC SUPPORT

Confirm the details
before you order.

Send the equipment model, photos of the mounting interface, quantity and destination. We will review the configuration and quote the selected components.

Enquire about BY-US101

What information should I send?

Ultrasound make and model
Main unit dimensions and weight
Probe count and holder dimensions

What is included?

Ultrasound unit, probes and consumables are excluded. Probe holders and storage options must be listed in the quotation.

Will this fit my equipment?

Fit depends on the exact device dimensions, mounting pattern and complete load. Send the full model and mounting details so we can review them.

How is my final price confirmed?

Your quotation identifies the selected configuration, quantity, shipping arrangements and delivery terms. Contact Bayint for the current range and a configuration-specific price.
