Medical Computer Cart with Battery | BYLUM100D

Quantity pricing · USD / EXWPer unit

1–49 units: $519.14
50–199 units: $507.42
200+ units: $497.02

EXW: shipping, taxes and duties excluded. Final configuration and delivery arrangements are confirmed in your quotation.

A mobile workstation for clinical computing, teleconsultation and organised equipment storage. Configure the screen, mounting and drawer arrangement around your team's workflow.

Position the worktop between 79.5 and 114.5 cm, with 35 cm of travel for different users and tasks.
A PTZ camera, microphone and speakers support two-way communication alongside clinical computing.
The specified 288 Wh lithium iron phosphate battery supports mobile use. Runtime depends on the connected load.
Drawer, keyboard tray and mounting options help organise devices and frequently used supplies.
Four 10.16 cm twin-wheel casters support movement, with brakes on the front pair for parking.
OEM/ODM options let hospitals and distributors select the display layout, storage and mounting arrangement.

Share your configuration and order quantity for a tailored quotation.

Product Description

The Bayint BYLUM100D is a medical computer cart with battery for hospitals, clinics and healthcare distributors. It combines an adjustable work surface, computer and audiovisual equipment with mobile storage to support bedside documentation and remote consultation. Choose the single- or dual-display arrangement and storage configuration for your project.

This medical computer cart on wheels brings the working surface and connected equipment together, helping staff move between care areas with the tools they need. The quoted configuration includes a computer, display equipment, camera and 288 Wh battery; the selected display count and accessory list are recorded in the final quotation.

Product Details

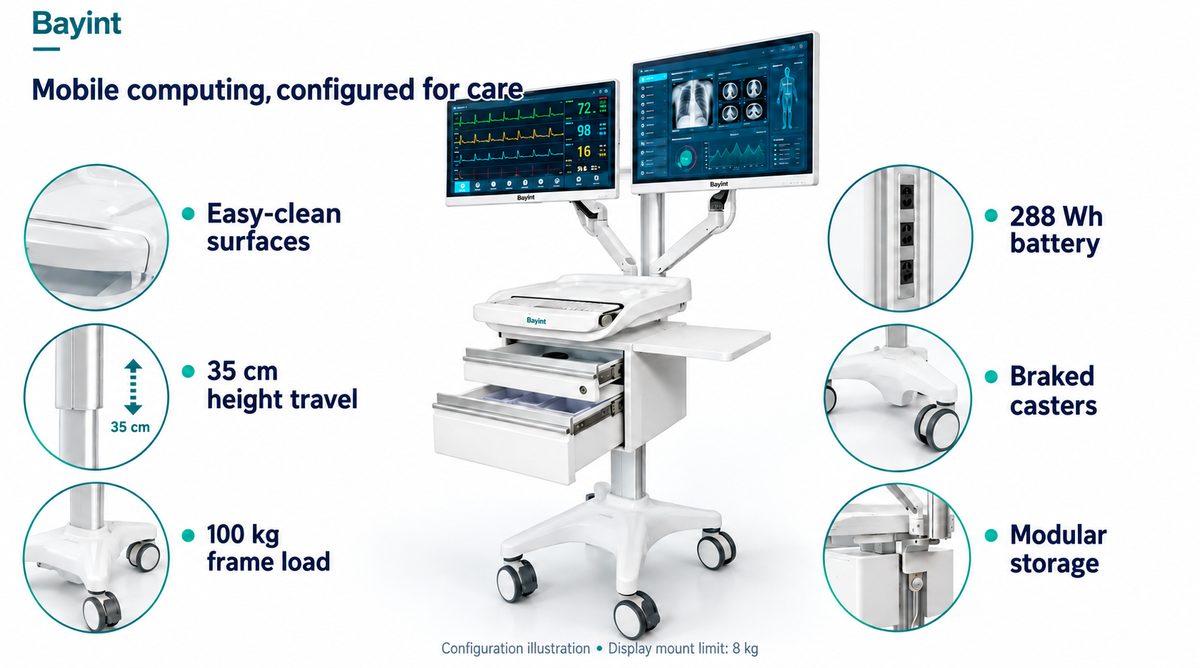

BYLUM100D adjustable medical computer cart feature illustration — Configuration illustration. Frame and display-mount load ratings are separate.

A work surface that adapts to care

Set the 50 × 47.5 cm worktop at a comfortable height and position the display for the task. The aluminium-alloy, steel and engineering-plastic structure combines a practical working surface with a mobile base.

The stated frame load capacity is 100 kg; the specified display support limit is 8 kg. Equipment placement and accessory loads must be reviewed together when selecting a configuration.

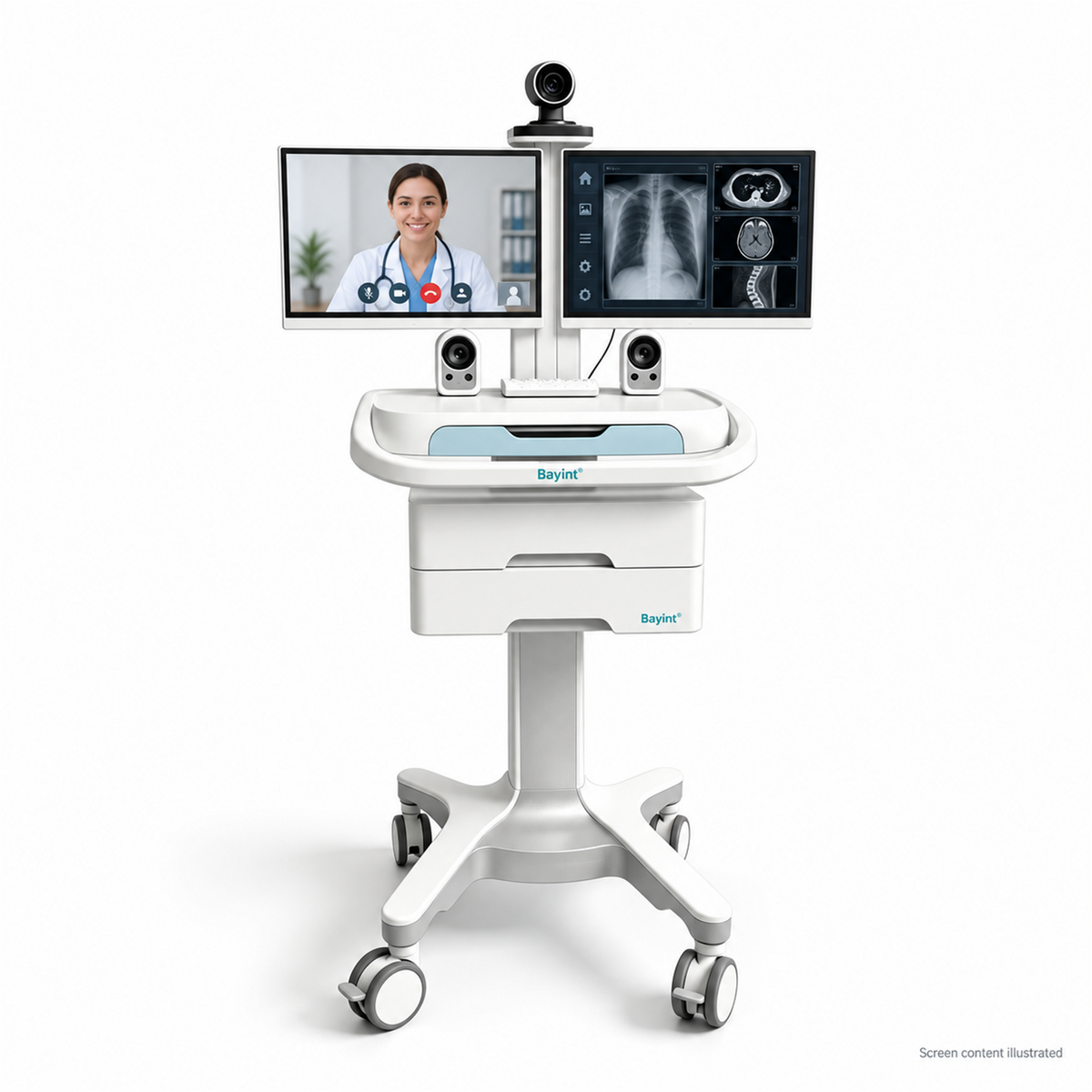

Brightened Bayint dual-screen telemedicine trolley with illustrative screen content — Retouched supplied image. Screen content is illustrative; configurations vary.

A clearer setup for teleconsultation

Use the camera, display equipment, microphone and speakers to bring remote participants into the clinical workflow. The specified computer combines an Intel Core i5-7200U processor, 8 GB DDR4 memory and 256 GB SSD storage.

A single display keeps the setup compact; a dual-display arrangement can separate the consultation view from supporting information. Discuss your software, network and display requirements before ordering.

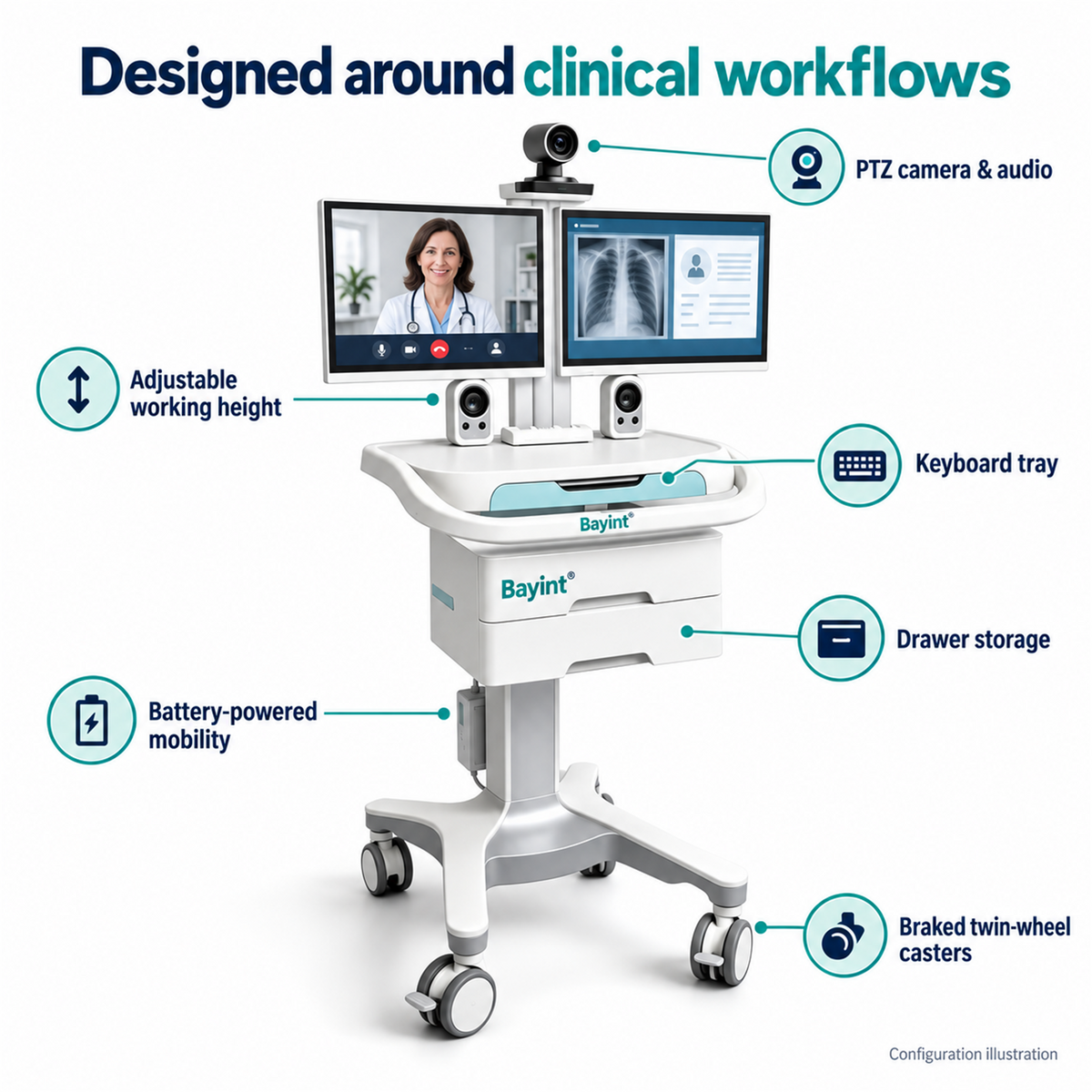

Bayint medical cart on wheels with drawers and keyboard tray feature illustration — Configuration illustration. Confirm drawer locks, tray and power options in your quotation.

Storage and controls within reach

For buyers sourcing a medical cart on wheels with drawers, the BYLUM100D offers storage and keyboard-tray arrangements that keep frequently used items close to the working surface. Lockable drawer options can help control access to supplies.

Choose device mounts and cable routing around your equipment. Easy-clean surfaces support routine cleaning; use a cleaning method approved for the selected materials and electronics.

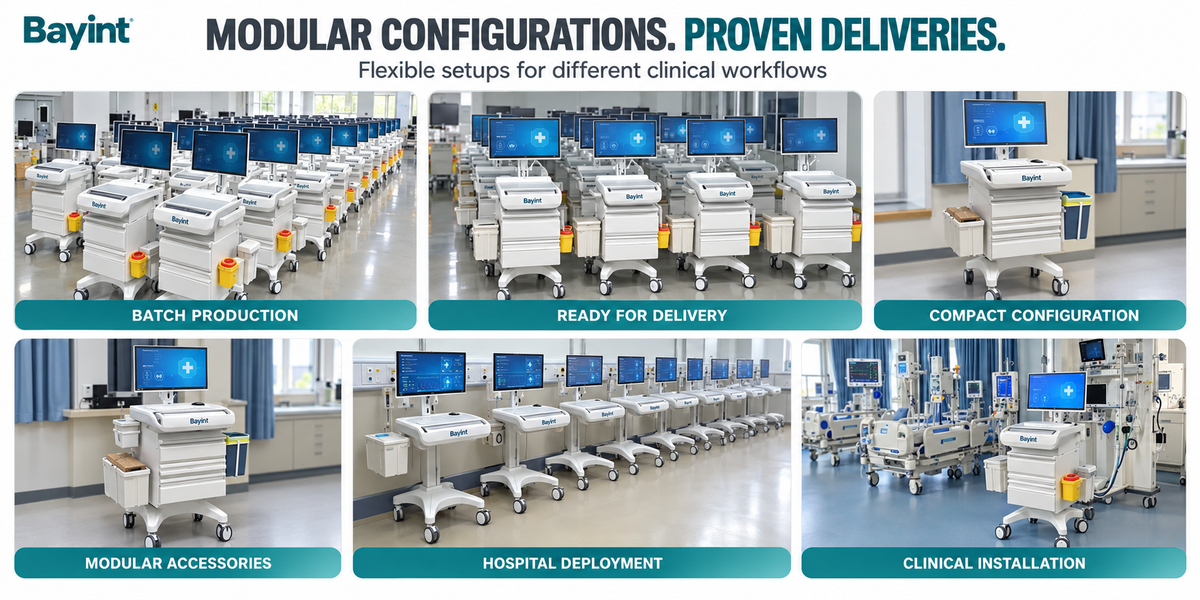

Customer-supplied medical computer trolley application and batch project photographs — Supplied application references show different cart models and configurations.

Application references for clinical projects

The supplied project photographs show medical computer workstations in care areas and grouped installations. They provide useful references for comparing drawer layouts, display mounts and available working space.

When specifying a computer on wheels cart for a hospital rollout, share the intended room, device list and order quantity. We can use that information to review the configuration for your project.

Company documentation for procurement

Bayint provides company and compliance documentation to support B2B procurement review. The supplied materials include ISO 13485, CE, RoHS and FCC document references.

Request the current certificate copies, holder details, validity dates and applicable model scope for your tender. Company certificates and component reports should be reviewed separately from certification of the complete configured cart.

Company-level document references; current copies and product-specific scope are available on request.

Supplied company certificate reference — Source document reference. Current copy and scope available on request.

Specifications

View full specificationsHide specifications

Specification	Details
Brand / model	Bayint / BYLUM100D
Category / applications	Medical Computer Carts / hospitals, clinics and telemedicine projects
Materials / colour	Aluminium alloy, steel and modified engineering plastic / white and silver; accents vary by configuration
Worktop size	50 × 47.5 cm
Worktop height / travel	79.5–114.5 cm / 35 cm; manual or electric lift configuration to be specified
Frame load / display support	Stated frame capacity: 100 kg / display support: maximum 8 kg
Display mount	15–28 inch displays; VESA 7.5 × 7.5 or 10 × 10 cm; 9 cm manual vertical adjustment; horizontal rotation >180°; tilt ±15°
Base wheel-centre spacing	48.4 × 40.8 cm; this is wheel-centre spacing, not overall footprint
Casters	Four 10.16 cm twin-wheel medical casters; front pair with brakes
Cart weight	≤30 kg, according to supplied cart specification; confirm final configured shipping weight
Processor / memory / storage	Intel Core i5-7200U / 8 GB DDR4 / 256 GB SSD
Display specification	21.5-inch TFT LCD, 1920 × 1080; single- or dual-display arrangement by configuration
Connectivity	2 × Gigabit Ethernet RJ45; Wi-Fi 802.11ac 2.4/5 GHz; Bluetooth 4.0 LE; optional 4G with external SIM slot
Interfaces	2 × USB 3.0; 4 × USB 2.0; 2 × COM; 1 × HDMI; 1 × VGA; 2 × RJ45; 3.5 mm headphone and microphone ports; power connection
Computer housing / installation	Fanless design; plastic housing and aluminium-alloy rear shell; VESA 10 × 10 cm
Computer dimensions / weight	51.4 × 33.8 × 5.5 cm (L × H × D); net 5.4 kg, gross 8.35 kg — computer unit only
Battery / power	Integrated 288 Wh lithium iron phosphate battery / specified output power 200 W
Power input / outputs	AC 100–240 V, 50/60 Hz / DC 12 V 6 A and DC 24 V 6 A; simultaneous output limits to be confirmed
Camera	Telycam PTZ; 1920 × 1080 at 30 fps; 12× optical and 12× digital zoom; 72.5° horizontal field of view; WDR and 3D noise reduction
Camera control	USB 3.0; RS232/USB control; VISCA and UVC 1.5; FECC; 128 presets; image-flip support
Audio	Microphone and speakers; full-duplex echo cancellation, noise suppression and automatic gain control; stated 360° pickup within 2 m
Software / touch options	Supplier-listed Windows 10 / Windows 7 configuration; optional capacitive touch. Confirm supported operating system, licensing and application compatibility for deployment.
Operating / storage environment	0–40 °C operating; −20–60 °C storage; 0–90% relative humidity, non-condensing
Packaging / overall assembled size	Available on request for the selected configuration
Documentation	Company certificate references supplied; component documentation lists CCC, CECP, CE, FCC, RoHS, MSDS and UN38.3. Current copies and scope available on request.
Customisation	OEM/ODM; display arrangement, device mounts, storage, keyboard tray, lift and power configuration

Plan your battery-cart configuration

Start with your existing computer, display and peripherals. Confirm their dimensions, weight, mounting-hole spacing and connector positions. Frame capacity and display-support capacity apply to different parts of the cart and must be checked separately.

The battery specification on this page applies to the reference assembly. Required runtime depends on the connected equipment, its actual load and operating conditions. Send your device list and required operating time so that Bayint can review the power configuration.

Confirm what your quotation includes

Ask for separate confirmation of the cart, PC and displays, battery and charger, mounting hardware, drawers and other accessories. Items shown or listed as options are supplied only when included in the agreed quotation. Check the applicable certification documents against the selected components and models; a component certificate does not automatically cover the complete system.

Request a quotation for BYLUM100D

Include the model, quantity, delivery country and preferred configuration. Pricing is agreed according to configuration, quantity, destination and delivery requirements. You can begin with the information you have; our team can help clarify the remaining requirements.

Send your BYLUM100D requirements · Medical computer cart selection guide · Evaluation checklist

FAQs

What is included in the quoted configuration?

The confirmed configuration includes the computer, display equipment, camera and 288 Wh battery. The gallery shows different single- and dual-display arrangements. The final quotation itemises display count, drawers, mounts and accessories for the selected build.

How long does the battery last?

The specified battery capacity is 288 Wh. Runtime depends on the number of displays, computer workload, peripherals and power conversion losses. Send your equipment load and required operating time for a configuration review.

Is the load capacity 100 kg or 8 kg?

These describe different parts: 100 kg is the stated frame capacity, while 8 kg is the specified display-support limit. Do not apply the frame rating to the display bracket. Mount loading and equipment placement need to be checked for the final arrangement.

Can we customise the cart for our hospital or distribution business?

Yes. OEM/ODM projects can specify display arrangements, drawer storage, mounting hardware, keyboard trays and power or lift options. Share drawings or samples, device dimensions and the target order quantity.

Will it work with our telemedicine or EHR software?

Compatibility depends on your application, operating system, drivers and network requirements. Provide the software and device list for review. The supplied USB audiovisual specification does not by itself establish EHR integration or software certification.

How are bulk orders priced and packed?

Reference prices are USD 519.14 for 1–49 units, USD 507.42 for 50–199 units and USD 497.02 for 200+ units. EXW: shipping, taxes and duties excluded. Packing dimensions, final gross weight and delivery arrangements are confirmed for your selected configuration.
