Home / Medical Computer Carts / BYLUM100DT

Medical Computer Carts · BYLUM100DT

Telemedicine Medical Computer Cart with Battery | BYLUM100DT

Quantity pricing · USD / EXWPer unit

1–49 units: $519.14
50–199 units: $507.42
200+ units: $497.02

EXW: shipping, taxes and duties excluded. Final configuration and delivery arrangements are confirmed in your quotation.

A mobile workstation for bedside computing and remote consultation.

Adjustable working height: Set the worktop from 79.5–114.5 cm for different users and tasks.

288 Wh battery: Support mobile computing between care areas; runtime depends on equipment load.

Video consultation: Bring the PTZ camera, microphone and speakers together in one workstation.

Configure for your team: Choose single or dual displays, drawer storage and device mounts.

Share your configuration and order quantity for a tailored quotation.

Product Description

The Bayint BYLUM100DT is a medical computer cart with battery designed for bedside documentation and telemedicine workflows. An adjustable worktop, computer and audiovisual equipment give clinical teams a mobile station for accessing information and connecting with remote participants.

Choose the display arrangement, drawer storage and mounting options around your equipment and working space. The confirmed configuration includes the computer, display equipment, camera and 288 Wh battery; the quotation records the selected screen count and accessory list. This computer on wheels cart is available for hospital procurement, distributor orders and OEM/ODM projects.

Product Details

Watch product video

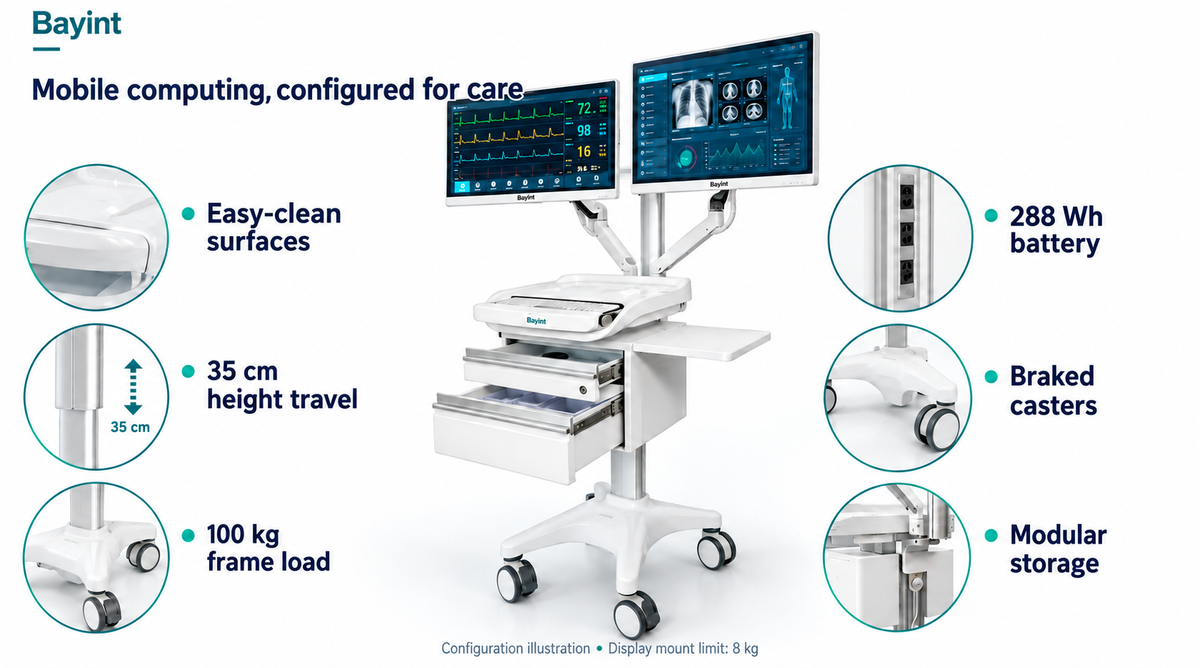

BYLUM100DT medical computer cart with adjustable worktop, configuration illustration — Illustrated configuration; check the separate frame and display-support limits.

A mobile workspace for daily clinical tasks

Bring the worktop to the task with a 79.5–114.5 cm height range and 35 cm of travel. The 50 × 47.5 cm surface provides space for computer work and the accessories selected for your department.

An aluminium-alloy and steel structure with engineering-plastic components supports the mobile workstation. The stated frame capacity is 100 kg, while the display mount is rated to a maximum of 8 kg; plan each equipment load around its mounting point.

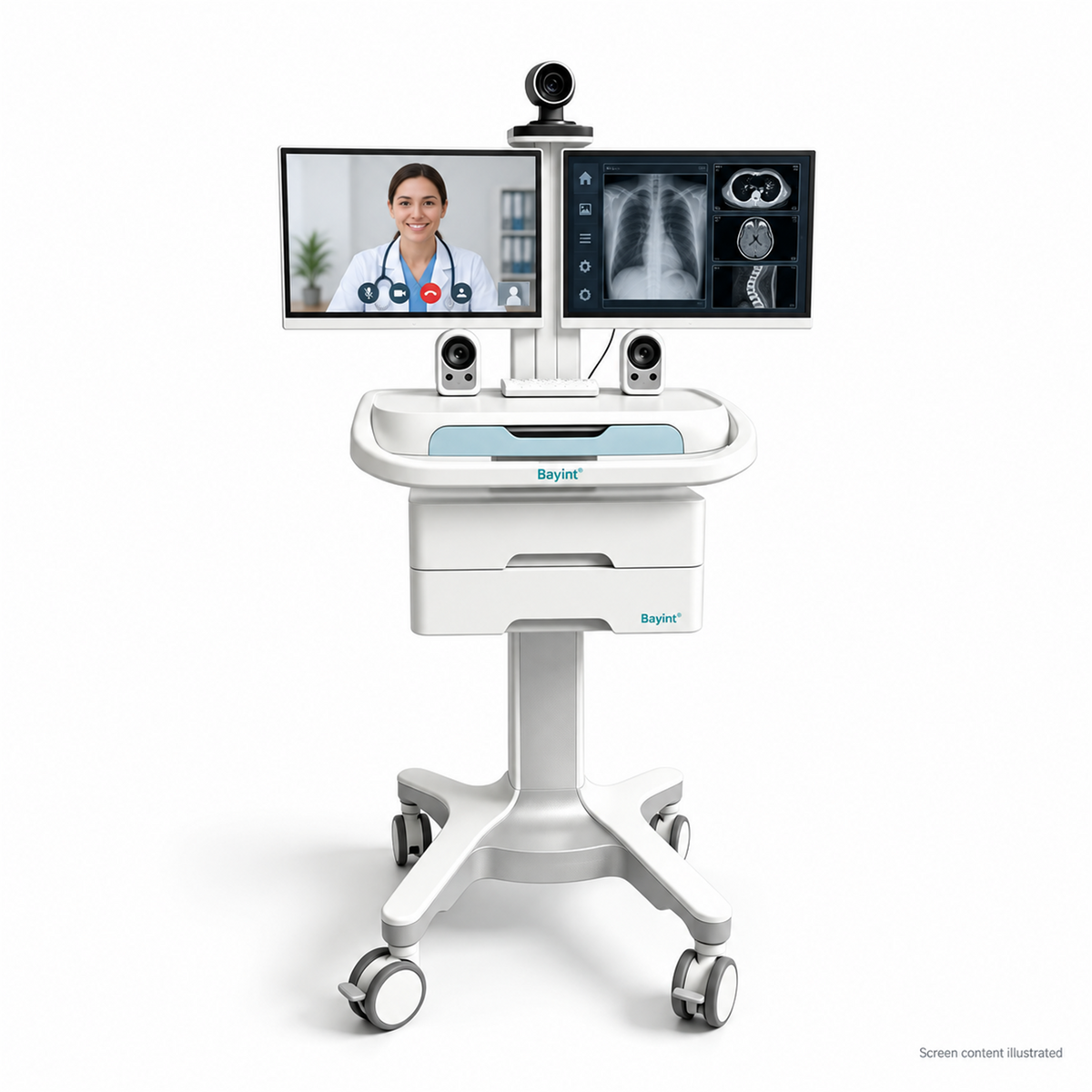

Bayint BYLUM100DT dual-display telemedicine configuration with illustrative screen content — Supplied product image with retouching; screen views illustrate use rather than included software.

Connect the consultation to the bedside

The BYLUM100DT brings a computer, display equipment, PTZ camera, microphone and speakers into one mobile consultation setup. Its specified Intel Core i5-7200U processor, 8 GB DDR4 memory and 256 GB SSD provide the hardware basis for your chosen applications.

Select a single display or a dual-display arrangement to suit how your team views consultation and supporting information. Confirm software, operating system and network requirements before deployment.

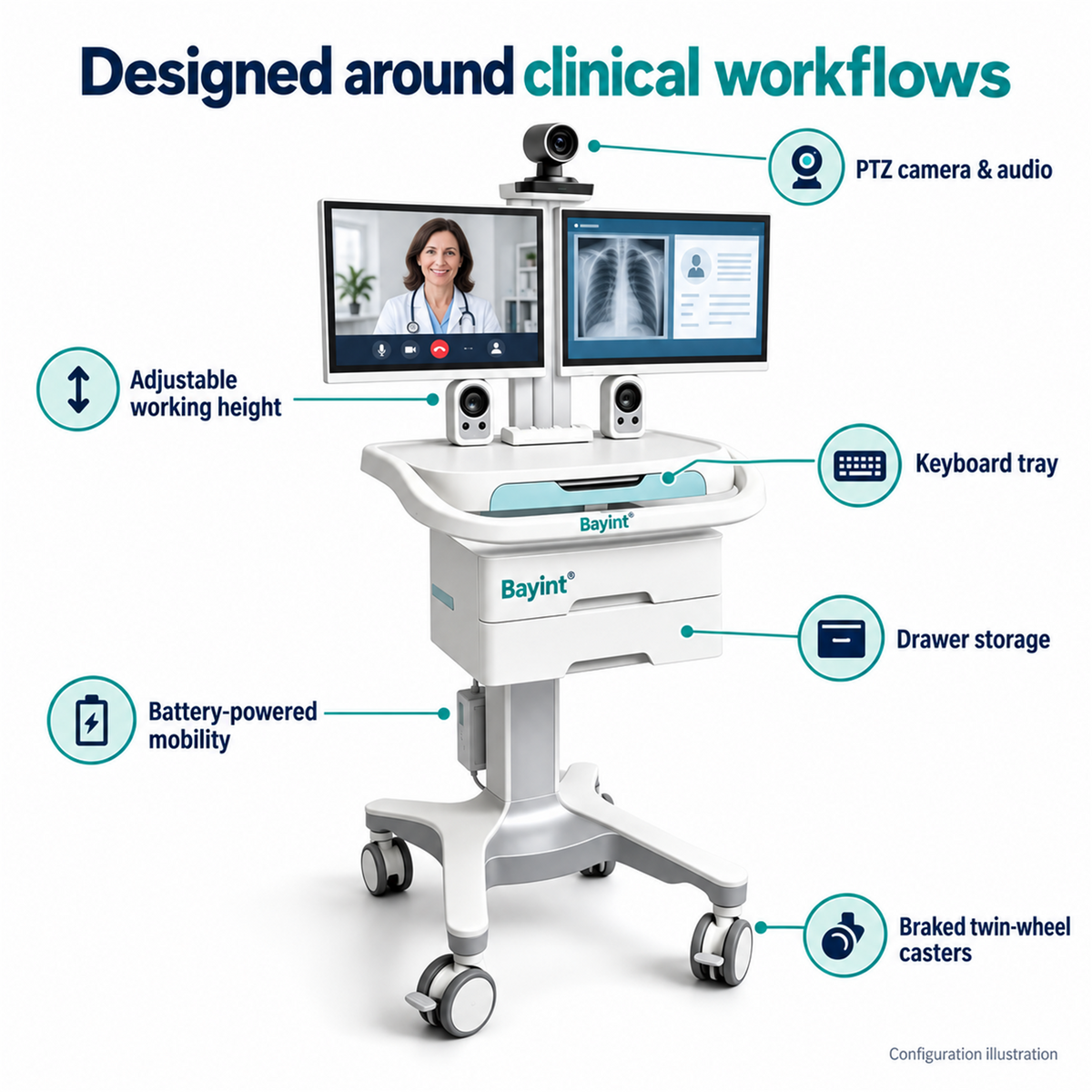

Medical computer cart on wheels with drawers, keyboard tray and accessory options — Storage, locking and tray arrangements are confirmed for the selected build.

Keep supplies alongside your computer

Arrange the keyboard tray, drawers and device mounts around the items staff use most often. This medical cart on wheels with drawers keeps working tools near the computer, with lockable storage options for controlled access to supplies.

The 288 Wh lithium iron phosphate battery supports mobile operation; operating time varies with connected devices and workload. Plan cable routing and charging around your workflow, and use cleaning methods suitable for the specified surfaces and electronics.

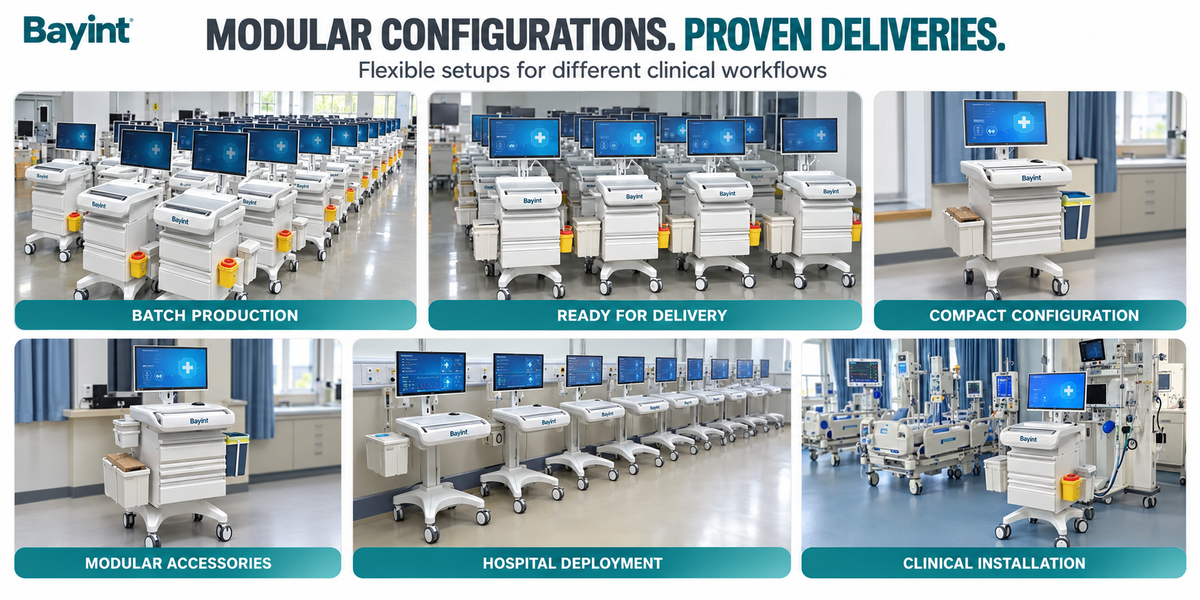

Supplied photographs of medical computer carts in clinical settings and grouped installations — Project references include several models and equipment arrangements.

Plan your department's cart configuration

Use the supplied application photographs to compare how screens, storage and accessories are arranged in clinical spaces. These examples can help your team discuss the space and equipment needed for a mobile computing project.

For hospital purchasing and distributor orders, send your room requirements, equipment dimensions and quantities. Bayint can review display mounts, storage and worktop requirements for the requested configuration.

Documentation to support purchasing review

Ask Bayint for the documentation needed by your purchasing team. The supplied company materials include ISO 13485, CE, RoHS and FCC references for review.

For a tender or export order, confirm certificate holder details, validity and the models or components covered. Company documentation and component reports should be assessed separately from the complete BYLUM100DT configuration.

Reference documents relate to the company or listed components; request current copies and applicable scope.

Supplied company certificate reference — Source document reference. Current copy and scope available on request.

Specifications

Specification	Details
Brand / model	Bayint / BYLUM100DT
Category / applications	Medical Computer Carts / hospitals, clinics and telemedicine projects
Materials / colour	Aluminium alloy, steel and modified engineering plastic / white and silver; accents vary by configuration
Worktop size	50 × 47.5 cm
Worktop height / travel	79.5–114.5 cm / 35 cm; manual or electric lift configuration to be specified
Frame load / display support	Stated frame capacity: 100 kg / display support: maximum 8 kg
Display mount	15–28 inch displays; VESA 7.5 × 7.5 or 10 × 10 cm; 9 cm manual vertical adjustment; horizontal rotation >180°; tilt ±15°
Base wheel-centre spacing	48.4 × 40.8 cm; this is wheel-centre spacing, not overall footprint
Casters	Four 10.16 cm twin-wheel medical casters; front pair with brakes
Cart weight	≤30 kg, according to supplied cart specification; confirm final configured shipping weight
Processor / memory / storage	Intel Core i5-7200U / 8 GB DDR4 / 256 GB SSD
Display specification	21.5-inch TFT LCD, 1920 × 1080; single- or dual-display arrangement by configuration
Connectivity	2 × Gigabit Ethernet RJ45; Wi-Fi 802.11ac 2.4/5 GHz; Bluetooth 4.0 LE; optional 4G with external SIM slot
Interfaces	2 × USB 3.0; 4 × USB 2.0; 2 × COM; 1 × HDMI; 1 × VGA; 2 × RJ45; 3.5 mm headphone and microphone ports; power connection
Computer housing / installation	Fanless design; plastic housing and aluminium-alloy rear shell; VESA 10 × 10 cm
Computer dimensions / weight	51.4 × 33.8 × 5.5 cm (L × H × D); net 5.4 kg, gross 8.35 kg — computer unit only
Battery / power	Integrated 288 Wh lithium iron phosphate battery / specified output power 200 W
Power input / outputs	AC 100–240 V, 50/60 Hz / DC 12 V 6 A and DC 24 V 6 A; simultaneous output limits to be confirmed
Camera	Telycam PTZ; 1920 × 1080 at 30 fps; 12× optical and 12× digital zoom; 72.5° horizontal field of view; WDR and 3D noise reduction
Camera control	USB 3.0; RS232/USB control; VISCA and UVC 1.5; FECC; 128 presets; image-flip support
Audio	Microphone and speakers; full-duplex echo cancellation, noise suppression and automatic gain control; stated 360° pickup within 2 m
Software / touch options	Supplier-listed Windows 10 / Windows 7 configuration; optional capacitive touch. Confirm supported operating system, licensing and application compatibility for deployment.
Operating / storage environment	0–40 °C operating; −20–60 °C storage; 0–90% relative humidity, non-condensing
Packaging / overall assembled size	Available on request for the selected configuration
Documentation	Company certificate references supplied; component documentation lists CCC, CECP, CE, FCC, RoHS, MSDS and UN38.3. Current copies and scope available on request.
Customisation	OEM/ODM; display arrangement, device mounts, storage, keyboard tray, lift and power configuration

Plan your telemedicine configuration

Start with the intended video-consultation workflow. Confirm camera mounting and clearance, microphone and speaker requirements, network access, and compatibility with your chosen conferencing application. Listed camera and computer specifications describe a reference configuration; ask for an itemized supply list.

The battery specification on this page applies to the reference assembly. Required runtime depends on the connected equipment, its actual load and operating conditions. Send your device list and required operating time so that Bayint can review the power configuration.

Confirm what your quotation includes

Ask for separate confirmation of the cart, PC and displays, battery and charger, mounting hardware, drawers and other accessories. Items shown or listed as options are supplied only when included in the agreed quotation. Check the applicable certification documents against the selected components and models; a component certificate does not automatically cover the complete system.

Request a quotation for BYLUM100DT

Include the model, quantity, delivery country and preferred configuration. Pricing is agreed according to configuration, quantity, destination and delivery requirements. You can begin with the information you have; our team can help clarify the remaining requirements.

Send your BYLUM100DT requirements · Medical computer cart selection guide · Evaluation checklist

FAQs

Q: Does the BYLUM100DT quotation cover the computer and battery?

A: Yes. The confirmed configuration includes the computer, display equipment, camera and 288 Wh battery. Ask for an itemised quotation showing the selected display count, storage, mounts and accessories.

Q: Can we choose the display and drawer arrangement?

A: Yes. Single- and dual-display arrangements, drawers, keyboard trays and device mounts can be specified for the project. The original gallery illustrates different configurations; confirm the required combination when ordering.

Q: What should we provide to assess battery runtime?

A: Send the power requirements of the computer, displays and attached devices, together with the operating time you need. The specified battery capacity is 288 Wh; actual runtime depends on workload, peripherals and conversion losses.

Q: How do we check equipment fit and load limits?

A: Provide device dimensions, weight and mounting details. The stated 100 kg frame capacity and maximum 8 kg display-support rating apply to different components. Each mount and the final equipment arrangement need a separate fit review.

Q: Can this cart run our clinical or video consultation software?

A: Share your application, operating system, licensing and network requirements for review. Computer and USB audiovisual specifications alone do not establish compatibility with every EHR or telemedicine platform.

Q: How do we request a volume quotation and delivery plan?

A: Send your configuration, quantity and delivery country. The unchanged reference tiers are USD 519.14 for 1–49 units, USD 507.42 for 50–199 units and USD 497.02 for 200+ units. EXW: shipping, taxes and duties excluded. Packing dimensions and gross weight are confirmed for the selected build.
